Flex Arrester

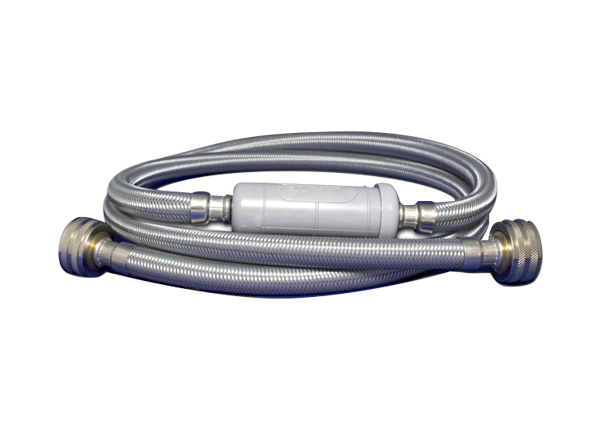

- the FlexArresterTM is a braided water supply hose with embedded water hammer arrester
- AA size, ASSE 1010 certified
- suitable for water temperature up to 160° F and pressure of 125 PSI
- available for washing machine, dishwasher and icemaker use
- brass end fittings and nuts with stainless steel furrule

- le FlexArrester™ est un tuyau d'alimentation d'eau tressé avec un antibélier intégré
- taille AA, certifiée ASSE 1010
- convient à une température de l’eau jusqu’à 160° F et à une pression de 125 PSI
- disponible pour machine à laver, lave-vaisselle et machine à glaçons
- embouts et écrous en laiton avec furrule en acier inoxydable


Part#UseConnectionLength
DWFA160PPLSP Dishwasher/Lave-vaisselle 3/8" OD comp x 3/8" OD comp 60"
IMFA160PPLSP Icemaker/Machine à glaçons 1/4" comp x 1/4" comp 60"
WMFA160PPLSP Washing machine/Machine à laver 3/4" FGH x 3/4" FGT 60"
