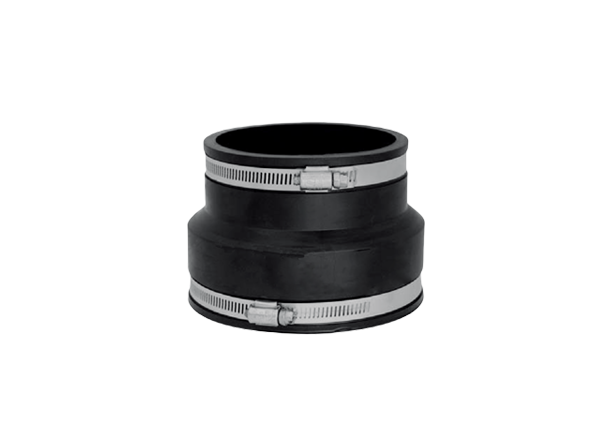

Flexible Rubber Pipe Couplings
Raccords pour tuyaux flexibles en caoutchouc
- LynCar’s TRUEFLEX couplings
- connects cast iron, plastic, steel, copper and tubular piping
- manufactured to ASTM 1173 and CSA B602 standards
- no glue, welding or soldering
- compensate for misaligned pipe
- tight seal every time
- Raccords TRUEFLEX de LynCar
- Se connecte des tuyaux en fer coulé, acier, cuivre et tubulaires
- fabriqués selon les normes ASTM 1173 et CSA B602
- pas de colle, soudage ou brasage
- compense pour les tuyaux mal alignés
- toujours un joint étanche
| CI = Cast Iron Pipe / tuyau en fonte | Pl = plastic pipe / tuyau en plastique | Clay = clay pipe / tuyau en argile |
|---|
| Part# | Description | Application | Carton Qty / Carton quantité |
|---|---|---|---|
| FC1250 | 1-1/4" / 1-1/4 po | 1-1/4" CI, PL x 1-1/4" CI, PL | 100 |
| FC1514 | 1-1/2" x 1-1/4" / 1-1/2 po x 1-1/4 po | 1-1/2" CI, PL x 1-1/4" CI, PL | 100 |
| FC1515 | 1-1/2" / 1-1/2 po | 1-1/2" CI, PL x 1-1/2" CI, PL | 100 |
| FC2000 | 2" / 2 po | 2" CI, PL x 2" CI, PL | 100 |
| FC2150 | 2" x 1-1/2" / 2 po x 1-1/2 po | 2" CI, PL x 1-1/2" CI, PL | 100 |
| FC3000 | 3" / 3 po | 3" CI, PL x 3" CI, PL | 80 |
| FC3020 | 3" x 2" / 3 po x 2 po | 3" CI, PL x 2" CI, PL | 80 |
| FC3150 | 3" x 1-1/2" / 3 po x 1-1/2 po | 3" CI, PL x 1-1/2" CI, PL | 80 |
| FC4000 | 4" / 4 po | 4" CI, PL x 4" CI, PL | 60 |
| FC4015 | 4" x 1-1/2" / 4 po x 1-1/2 po | 4" CI, PL x 1-1/2" CI, PL | 60 |
| FC4020 | 4" x 2" / 4 po x 2 po | 4" CI, PL x 2" CI, PL | 60 |
| FC4030 | 4" x 3" / 4 po x 3 po | 4" CI, PL x 3" CI, PL | 60 |
| FC5000 | 5" / 5 po | 4" CLAY x 4" CLAY | 30 |
| FC5030 | 5" x 3" / 5 po x 3 po | 4" CLAY x 3" CI, PL | 30 |
| FC5040 | 5" x 4" / 5 po x 4 po | 4" CLAY x 4" CI, PL | 30 |
| FC6000 | 6" / 6 po | 6" CI, PL x 6" CI, PL | 20 |
| FC6030 | 6" x 3" / 6 po x 3 po | 6" CI, PL x 3" CI, PL | 20 |
| FC6040 | 6" x 4" / 6 po x 4 po | 6" CI, PL x 4" CI, PL | 20 |
| FC6050 | 6" x 5" / 6 po x 5 po | 6" CI, PL x 4" CLAY | 20 |
| FC8000 | 8" / 8 po | 8" CI, PL x 8" CI, PL | 10 |
| FC8040 | 8" x 4" / 8 po x 4 po | 8" CI, PL x 4" CI, PL | 10 |
| FC8060 | 8" x 6" / 8 po x 6 po | 8" CI, PL x 6" CI, PL | 10 |
